Default Vehicle Painting

Ok, I got myself organised, took photos and am ready for a step-by-step tutorial on my vehicle painting technique

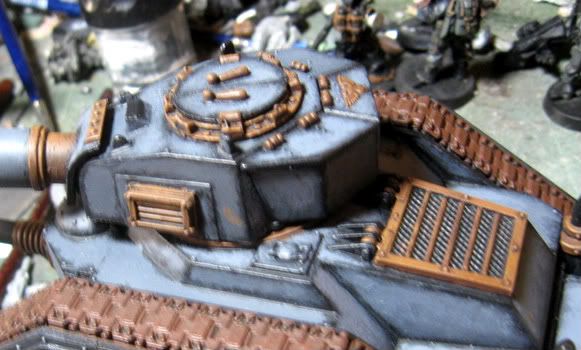

First up, the tank undercoated. You'll notice i've put the transfers on already, and touched up the black on the clear edges of the transfers. This will help prevent "lifting" later on.


Next I stipple the base colour on the tank leaving the edges and recesses black.


Then a coat of the new badab black wash (saves me thinning the old ink down ;))


And another thinner stipple of the original base colour


Then an intermediary highlight, again stippled, covering about 3/4 of the basecoat


Lastly on the armour, a severe highlight covering a max of 1/4 of the previous coat and the rivets


The next step is to touch-up the transfers, add any other markings or badges, paint the company colours on the sides and basecoat the metal areas. I basecoat in what is roughly snakebite leather with a bit more red.


The areas which will be brass then receive an intermediary highlight which has had yellow mixed into the original colour

Then a final highlight with white & yellow mixed in


The tracks then receive a wash of badab black/brown ink and a scruffy stipple of the original metal basecoat mixed unevenly with fiery orange and blood red, followed by an uneven light drybrush of chainmail and a coat of badab


Now the weathering powders, I use "Tamiya Masters Weathering Sets A & B" and a wide flat half-dead old drybrush to apply them. Use forcefull circular motions to collect the powder on the brush. I Start with the "mud" powder from set A, this I apply to all of the tracks and surrounding areas, and the lower part of the tank, using small circular motions on the tracks and up & down for the hull


Then the "rust" from set B applied lightly over the tracks, the "soot" also from set B around the engines, exhaust pipes and gun barrels and then the "sand" from set A applied to middle and upper regions of the tank with only front-to-back strokes of the brush




Spray with a high quality matte varnish,
Et Voila!
General Panic is offline
Sponsored Links
Advertisement

post #2 of 7 (permalink) Old 09-16-08, 05:54 PM

Join Date: Jul 2008
Posts: 92
Default

You ALMOST make that look easy. I had no idea that the weathering was a series of powders, that's awesome! Before seeing this I thought that if I ever did vehicles they'd be "clean" models. But with this knowledge I feel like I could make a good go at doing a more worn looking piece of field armor. Thanks!
Recluce is offline
post #3 of 7 (permalink) Old 10-20-08, 01:02 AM
Painting Munky style!

Munky's Avatar
Munky's Flag is: England

Join Date: Oct 2008
Location: Essex, England
Posts: 741
Reputation: 1
Default

would you be able to do a tut on your stippling effect, it gives good results and id like to see how you do it?
Munky is offline

post #4 of 7 (permalink) Old 11-27-08, 03:41 PM
Member

Thomas Mondrup's Avatar
Thomas Mondrup's Flag is: Denmark

Join Date: Nov 2008
Location: Denmark, Jutland
Posts: 64
Reputation: 1
Default

Thanks Panic, this is realy gonna be a big help for me, building and painting my new IG armored divison. Can't wait till I get started!

"Pain is an illusion of the senses, fear an illusion of the mind, beyond these only death waits as silent judge o'er all."
— Primarch Mortarion
Thomas Mondrup is offline
post #5 of 7 (permalink) Old 12-03-08, 08:54 PM
Senior Member

Holmstrom's Avatar

Join Date: Dec 2008
Location: The Black Library
Posts: 1,375
Reputation: 1
Default Awesome

I had been looking for a decent guide for getting details like that but every one of them seemed pretty overly complicated. This basically describes everything without ranting on about stuff. Excellent work, btw.
Holmstrom is offline
post #6 of 7 (permalink) Old 12-04-08, 07:29 AM Thread Starter
Senior Member

General Panic's Avatar
General Panic's Flag is: Europe

Join Date: Jul 2008
Location: Valencia - Spain
Posts: 240
Reputation: 1
Default

Glad to be helpful!
General Panic is offline
post #7 of 7 (permalink) Old 02-01-10, 07:03 AM
Senior Member

papa nurgle's Avatar
papa nurgle's Flag is: Australia

Join Date: Jan 2010
Posts: 169
Reputation: 1
Default

thats really cool! I think ill give that a go on my deathguard. Thanks!
